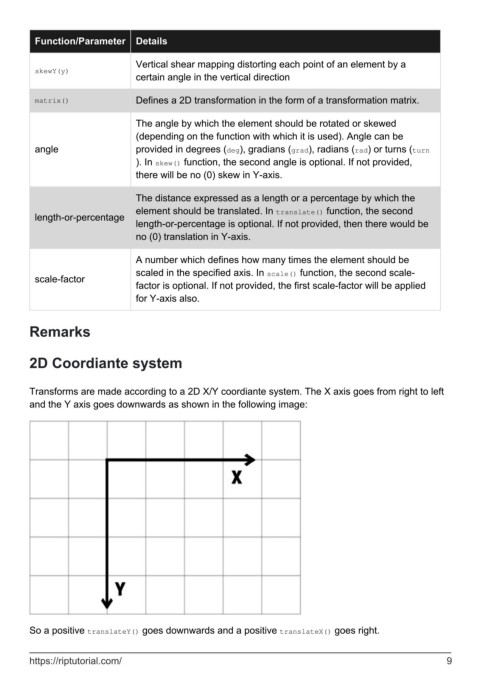

Function/Parameter       Details

                                   Vertical shear mapping distorting each point of an element by a
          skewY(y)
                                   certain angle in the vertical direction


          matrix()                 Defines a 2D transformation in the form of a transformation matrix.

                                   The angle by which the element should be rotated or skewed
                                   (depending on the function with which it is used). Angle can be
          angle                    provided in degrees (deg), gradians (grad), radians (rad) or turns (turn
                                   ). In skew() function, the second angle is optional. If not provided,
                                   there will be no (0) skew in Y-axis.


                                   The distance expressed as a length or a percentage by which the
                                   element should be translated. In translate() function, the second
          length-or-percentage
                                   length-or-percentage is optional. If not provided, then there would be
                                   no (0) translation in Y-axis.


                                   A number which defines how many times the element should be
                                   scaled in the specified axis. In scale() function, the second scale-
          scale-factor
                                   factor is optional. If not provided, the first scale-factor will be applied
                                   for Y-axis also.


        Remarks



        2D Coordiante system



        Transforms are made according to a 2D X/Y coordiante system. The X axis goes from right to left
        and the Y axis goes downwards as shown in the following image:

































        So a positive translateY() goes downwards and a positive translateX() goes right.
